TAURUS S/S TIG ROD 309L-2.4MM
Price displayed is per kg. Product is sold in a 5kg pack. Quantity adjusts to pack size.
Out of stock
Description

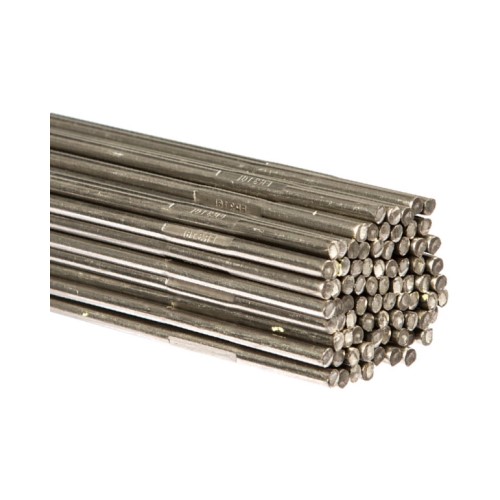

TAURUS TIG 309L rod is mainly used under high dilution conditions, particularly dissimilar welds between stainless and CMn steels. There are three main areas of application: buffer layers and clad steels, dissimilar joints and similar metal joints.
WELDING POSITIONS
- Down hand
- Horizontal flat
- Horizontal vertical
- Vertical up
- Overhead
CLASSIFICATIONS
- AWS A5.9 ER309L
- EN ISO 14343-A G/W 23 12 L
- EN ISO 14343-B SS 309L
| COMPOSITION | % |
| Carbon | 0.03 Max |
| Manganese | 1.0 – 2.5 |
| Silicon | 0.3 – 0.65 |
| Sulphur | 0.02 Max |
| Phosphorous | 0.02 Max |
| Chromium | 12 – 14 |
| Nickel | 23 – 25 |
| Ferrite Number | 6 – 12 |
| MECHANICAL PROPERTIES | AS WELDED |
| Tensile strength | 590 Mpa |
| 0.2% Proof stress | 450 Mpa |
| Elongation on 4d | 43 % |
| Elongation on 5d | 41 % |
| Impact energy at +20°C | >200 J |
| Hardness | 205 – 250 HV |
