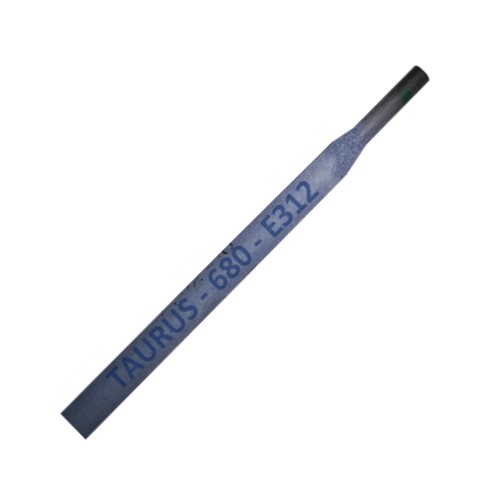

TAURUS PRO S/S ELECTRODE INOX 680-4.0MM (312)
Out of stock
Description
TAURUS INOX 680 (E312) is a rutile, austenitic-ferritic coated electrode with 25-30 % ferrite content. The weld metal is extremely crack resistant and lends itself admirably to the welding of dissimilar and difficult-to-weld steels. It can be used for the welding of high-nickel alloys without becoming fully austenitic due to nickel pickup.
WELDING POSITIONS
- Flat
- Horizontal
- Vertical up
- Overhead
CLASSIFICATIONS
- AWS A5.4 E 312L-16
- ISO 3581 E 29 9 R 26
- DIN 8556 E 29 9 R 26
| COMPOSITION | % |
| Carbon | 0.10 % |
| Manganese | 1.00 % |
| Silicon | 0.90 % |
| Nickel | 10.00 % |
| Chromium | 29.00 % |
| MECHANICAL | AS WELDED |
| 0.2% Proof stress | 550 N/mm² |
| Tensile strength | 750 N/mm² |
| Elongation (5xd) | 23 % |
| Impact strength ISO-V@+20°C | 70 Joule |
| Ferrite level | 35 % |
