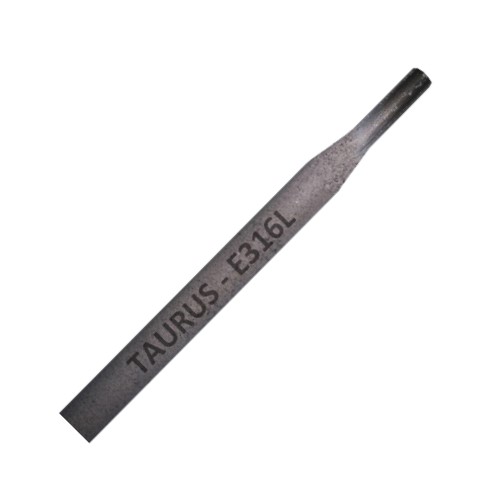

TAURUS PRO S/S ELECTRODE 316L-2.0MM
Out of stock
Description
TAURUS 316L is a rutile, high-alloy, extra-low carbon austenitic electrode for welding corrosion resistant CrNiMo steels resistant to atmospheric corrosion. Resistant to grain disintegration at operating temperatures up to 350°C. Very smooth weld with clean weld edge, low spatter loss and easy slag removal. Suitable for welding AISI/ASTM 316, 316L, 316LN, 316H and 316Ti.
WELDING POSITIONS
- Flat
- Horizontal
- Vertical up
- Overhead
CLASSIFICATIONS
- AWS A5.4 E 316L-16
- ISO 3581 E 19 12 3 LR 26
- DIN 8556 E 19 12 3 nC R 26
| COMPOSITION | % |
| Carbon | 0.03 % |
| Manganese | 0.70 % |
| Silicon | 0.70 % |
| Nickel | 12.00 % |
| Chromium | 19.00 % |
| Molybdenum | 2.50 % |
| MECHANICAL | AS WELDED |
| 0.2% Proof stress | 400 N/mm² |
| Tensile strength | 550 N/mm² |
| Elongation (5xd) | 35 % |
| Reduction of area | 50 % |
| Impact strength ISO-V@0°C | 60 Joule |
| Impact strength ISO-V@+20°C | 70 Joule |
