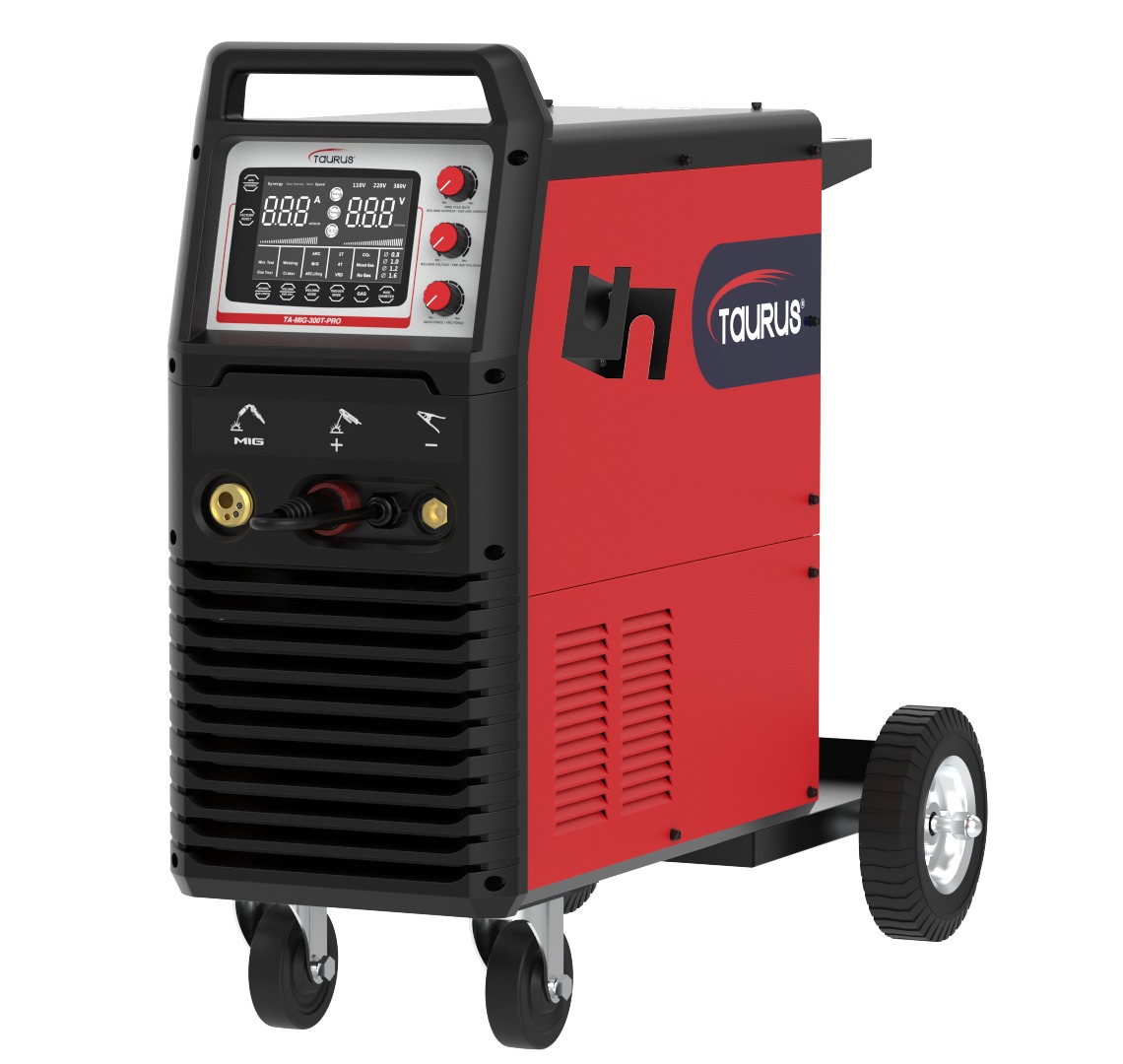

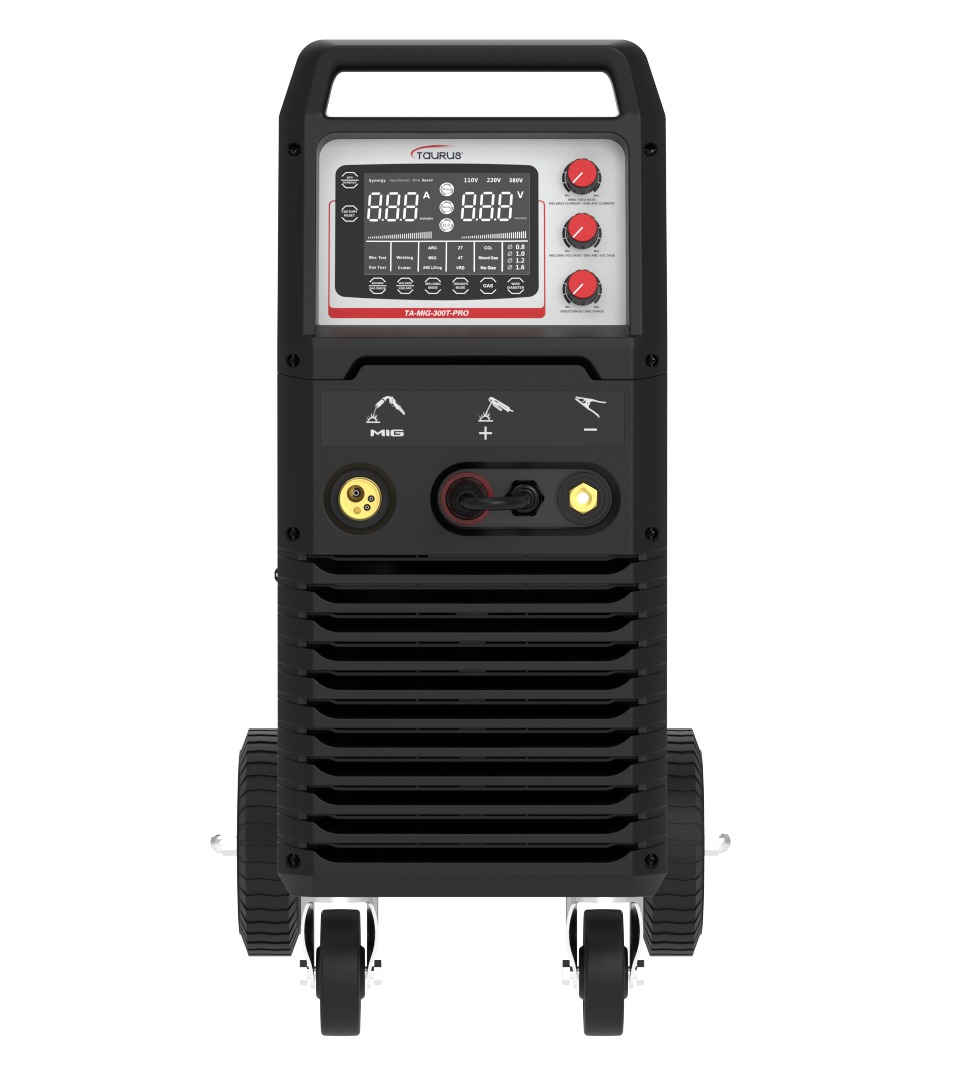

TAURUS MIG-300T-PRO MIG/MMA COMPACT TROLLEY WELDING MACHINE – 300A – 380V + COMPACT TROLLEY + BZ36 TORCH
Description
This Taurus MIG 300T-PRO welding machine is a high performance semi-automatic welding machine for CO2 and mixed gas shielded welding. The advanced power input system will detect and handle a voltage drop or a spike of up to 10%. This will not only safeguard the machine against damage resulting from erratic power supply, but will also ensure smooth, uninterrupted operation. It can weld low carbon steel, low alloy steel, stainless steel and other compo-nents. It uses Φ0.8-Φ1.0mm diameter stainless steel welding wire, steel wire, flux-cored wire and other solid wire. It is portable can be applied to fabrication and other industries. This MIG inverter welding machines have reasonable static characteristics and good dynamic performance.
SOME KEY FEATURES
• Advanced IGBT technology ensures excellent welding perfor-mance.
• Synergic MIG, lift TIG and MMA welding functions.
• Uses 5kg and 15kg spools. Adjustable burn back.
• 2T & 4T trigger mode.
• VRD protection in MMA mode ensures operator safety during idle mode.
• Hot start, arc force and anti-stick technology.
• Compact, heavy duty with high duty cycle for industrial applications.
ACCESSORIES
• Earth clamp cable kit.
• MIG torch.
• Argon flowmeter.
• Cylinder trolley.
SPECIFICATION |
DESCRIPTION |
| PRODUCT CODE | TA-MIG-300T-PRO |
| MODEL | MIG 300T-PRO |
| RATED POWER SUPPLY INPUT | 380V±10% THREE PHASE |
| DUTY CYCLE 40°C @ 10 MINUTES | 60% @ 300A(MIG) |
| OUTPUT VOLTAGE | 66V |
| WELDING RANGE | 40 TO 300A (MIG) |
| WIRE DIAMETER | 0.8 TO 1.0mm |
| DIMENSIONS(mm) AND NET WEIGHT(kg) | 550 x 250 x 520mm▪ 31KG |
