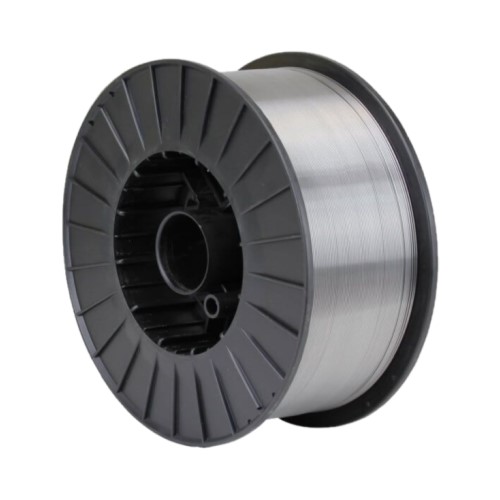

TAURUS GASLESS FCW E71T-11-1.2MM
Price displayed is per kg. Product is sold in a 15kg spool. Quantity adjusts to spool size.
Description
TAURUS E71T-11 is an easy-to-use open-arc, wire (no shielding gas required). It is recommended for use with smaller MIG machines or in areas where the provision of gas cylinders is not practical. TAURUS E71T-11 is well suited for butt, fillet and lap joints on steel thicknesses of 1.6 mm to 10 mm. It is not recommended for welding steel thicknesses greater than 12 mm.
WELDING POSITIONS
- Downhand
- Horizontal flat
CLASSIFICATIONS
- AWS A5.20 E71T-11
- EN 17632-A T 42 Z W N 1 H10
| BRAZING / WELDING PARAMETERS | |
| Process | Oxygen – Acetylene |
| Flame setting | Neutral |
| Flux required | None |
| COMPOSITION | % |
| Carbon | 0.04 – 0.15 |
| Manganese | 0.35 – 0.60 |
| Silicon | 0.03 Max |
| Sulphur | 0.035 Max |
| Phosphorous | 0.04 |
| Copper | 0.35 Max |
| MECHANICAL PROPERTIES | AS WELDED |
| Melting Range | 1490 °C |
| Tensile strength | ± 386 MPa |
| Hardness | ± 120 HB |
