iWELD PLASMA CUTTER-CUT40H-220V+PT31 TORCH

iWELD PLASMA CUTTER-CUT40H-220V+PT31 TORCH

Out of stock

SKU: IW-CUT40H Categories: ,

Description

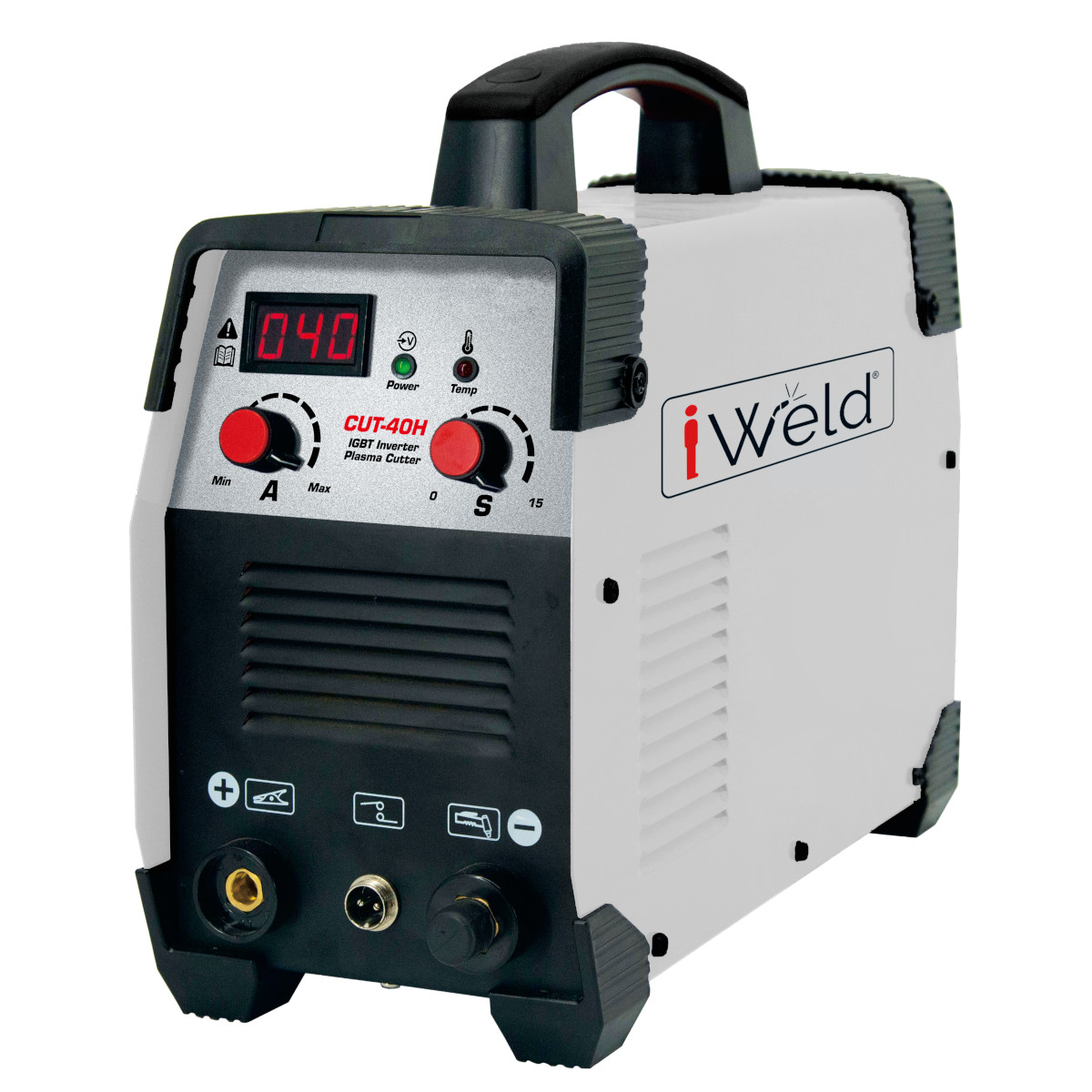

This iWELD CUT40H is a 40A, 220v single phase air plasma cutting machine. It produces a stronger, more concentrated and stable electric arc. The temperature of the arc can reach a high ionization state, forming a powerful plasma arc which allows metal to be cut quickly by plasma arc. The heat affected zone is reduced as much as possible and the energy is used more effectively giving a super smooth cutting surface. It can be used for cutting various metal materials such as stainless steel, aluminium, copper, cast iron and carbon steel. The advanced power input system will detect and handle a voltage drop or a spike of up to 25%. This will not only safeguard the machine against damage resulting from erratic power supply, but will also ensure smooth, uninterrupted operation.



The iWELD CUT40H features a fast cutting speed, narrow cutting seam, clean cut, small heat affected zone, low deformation, simple operation and outstanding energy saving effect. It’s suitable for manufacturing, installation and maintenance of various machinery and metal structures, cutting thin plates, opening holes, patching, beveling, cutting pipes and other cutting processes. It is widely used in aerial work, outdoor work, indoor and outdoor decoration, shipyard steel plate, petrochemical equipment, construction site and other industries. Manufactured in accordance with IEC60974-1, Safety Requirements for Arc Welding Equipment.



SOME KEY FEATURES

  • Reliable overheat, over-current and over-voltage protection.
  • A 25% Voltage fluctuation safeguard.
  • Easy arc striking and stable arc allow easy arc control.
  • Accurate preset current ensures a clean cut, energy-saving performance on workpieces of differing thickness.
  • Adjustable Pre-flow checking and post-flow cooling.
  • Narrow cutting seam, clean cutting edge and no deformation.
  • Air pressure required is 5 bar.



ACCESSORIES

  • Earth clamp cable kit.
  • PT31 hand-held plasma torch.



SPECIFICATION

DESCRIPTION

PRODUCT CODE

IW-CUT40H

MODEL

CUT40H

POWER SUPPLY VOLTAGE

220V±25% SINGLE PHASE

DUTY CYCLE 40°C @ 10 MINUTES

35% @ 40A

OPEN CIRCUIT VOLTAGE

231V

OUTPUT CURRENT RANGE

10 TO 40A

MAXIMUM QUALITY CUT THICKNESS (MILD STEEL)

6mm(PT31 TORCH) ▪ 10mm(PT60 TORCH) @ 5-6 BAR

SEVERANCE CUT THICKNESS (MILD STEEL)

8mm(PT31 TORCH) ▪ 12mm(PT60 TORCH) @ 6-8 BAR

PACKAGE DIMENSIONS(MM) AND NET WEIGHT(KG)

455 x 270 x 345mm  ▪  6.6KG
